Electric Folding Booms

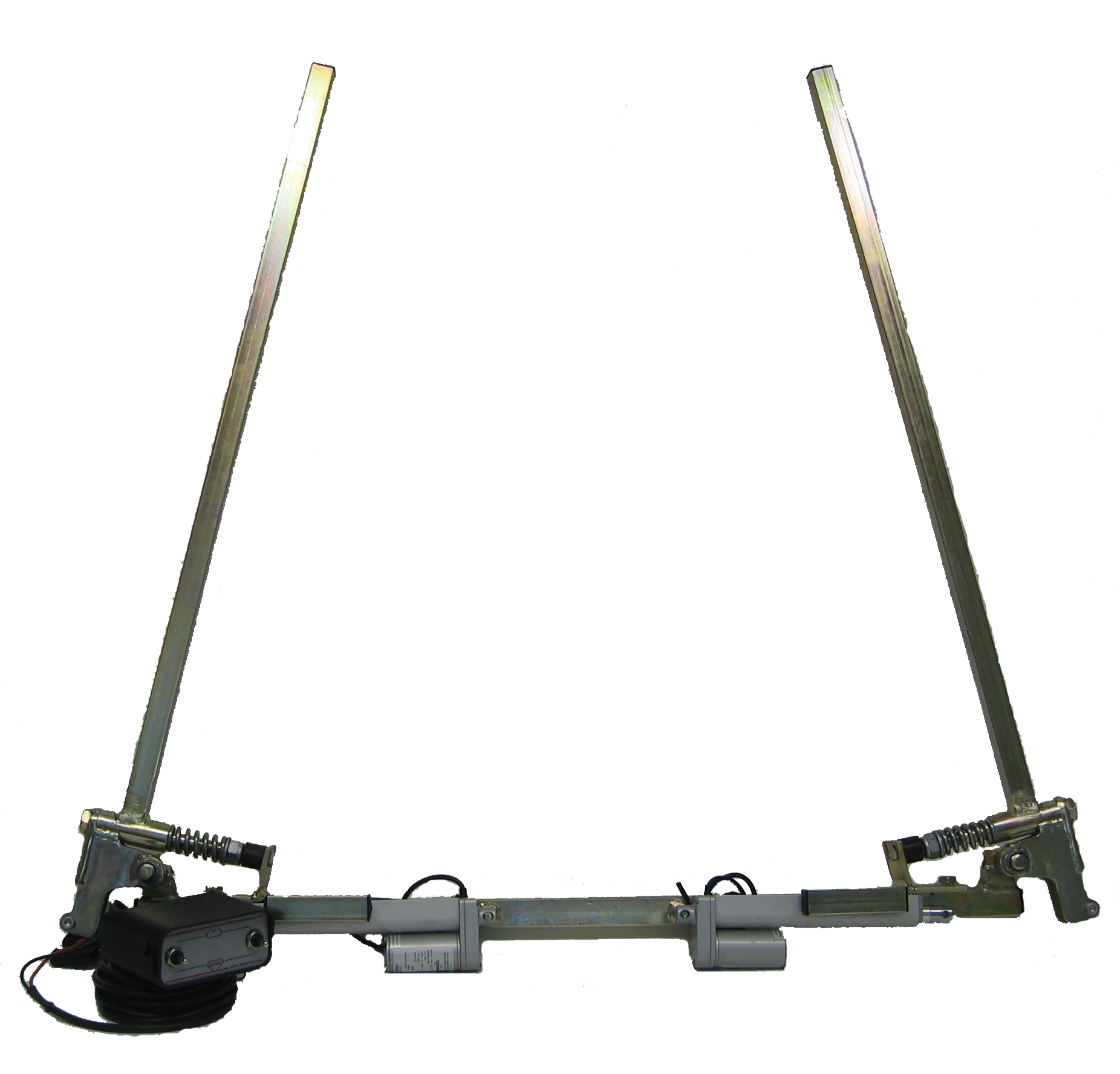

ELECTRA 10 ft & 18 ft Boom

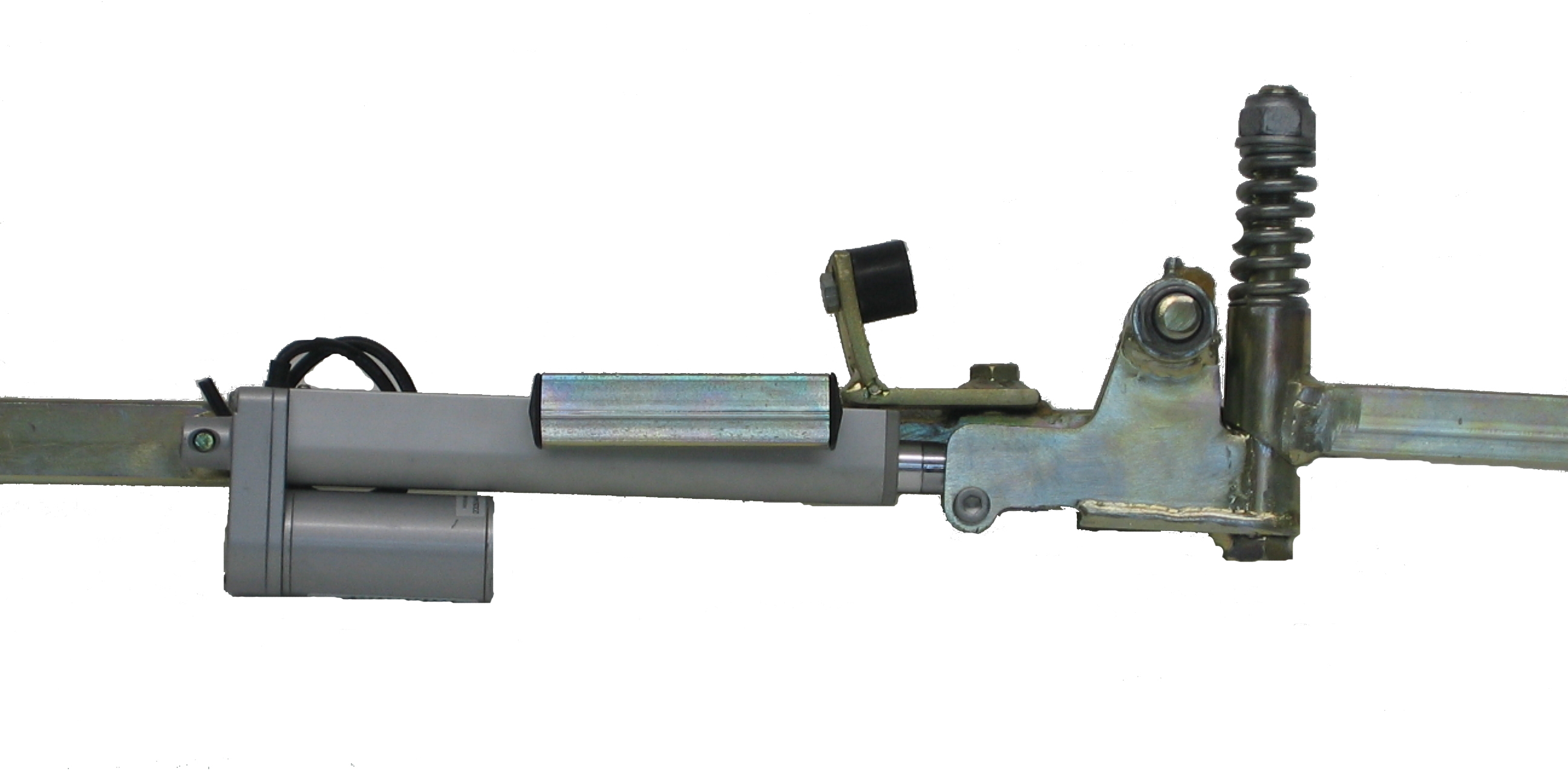

(Click to see Electra & Spring-Loaded hinge)
Description: The electric folding boom is spring-loaded with 12 vdc actuators. It can be easily mounted with "U" bolts and is available in 2 different sizes: 10ft and 18ft. The boom structure is made of galvanized square steel. The kit includes the 12 volt actuators and the switchbox (open/close) to operate the boom. All our booms are boxed and can be shipped by carrier such as UPS. Nozzles, nozzle body, "U" bolts, and plumbing are not included.
Boom Cross-Section dimension: center section is 1 1/4" x 1 1/4"
wing section is 1" x 1"
Switchbox Includes:
12 ft of power supply cable
21 ft of actuator cable
| Table: Part Numbers for electric Folding Booms | ||||
|
Open Boom Length |
Hinge to Hinge Length |
Weight with Actuators |
Box Dimension |
Part Number |
|
10 ft |
36 in |
30 lbs |
40" x 8" x 8" |
BG019151 (boom only) BG019151K (with actuators & switchbox) |
|
18 ft |
55 in |
46 lbs |
56" x 8" x 8" |
BG019193 (boom only) BG019193K (with actuators & switchbox) |
