Manual Folding Booms

[ Up ]

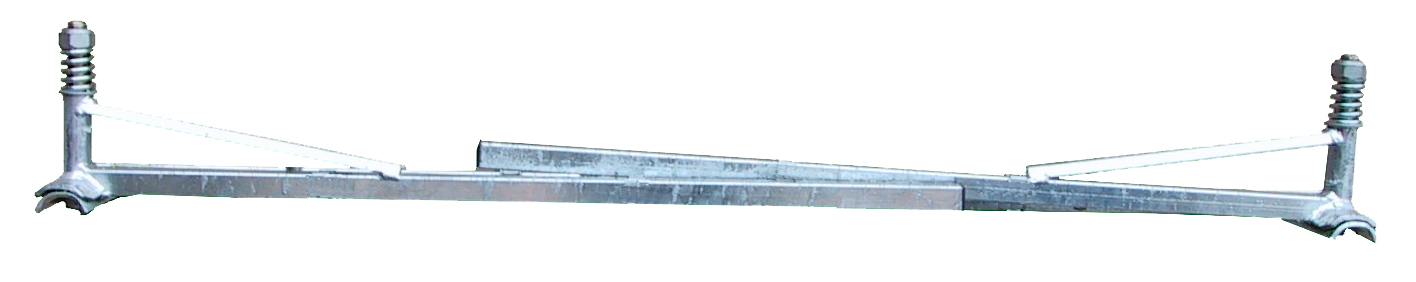

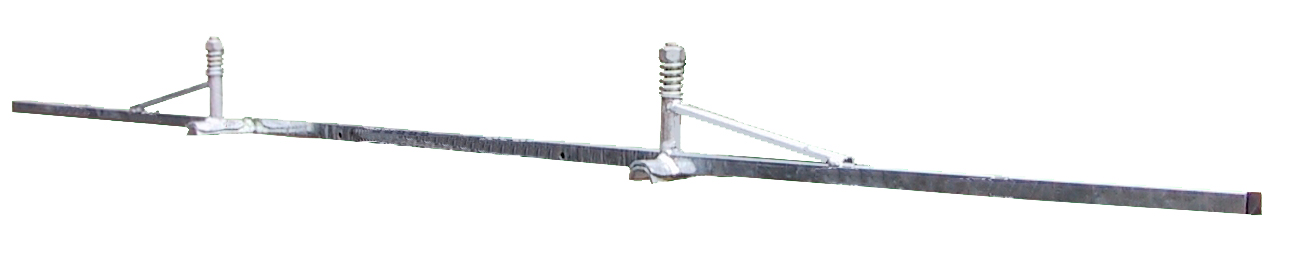

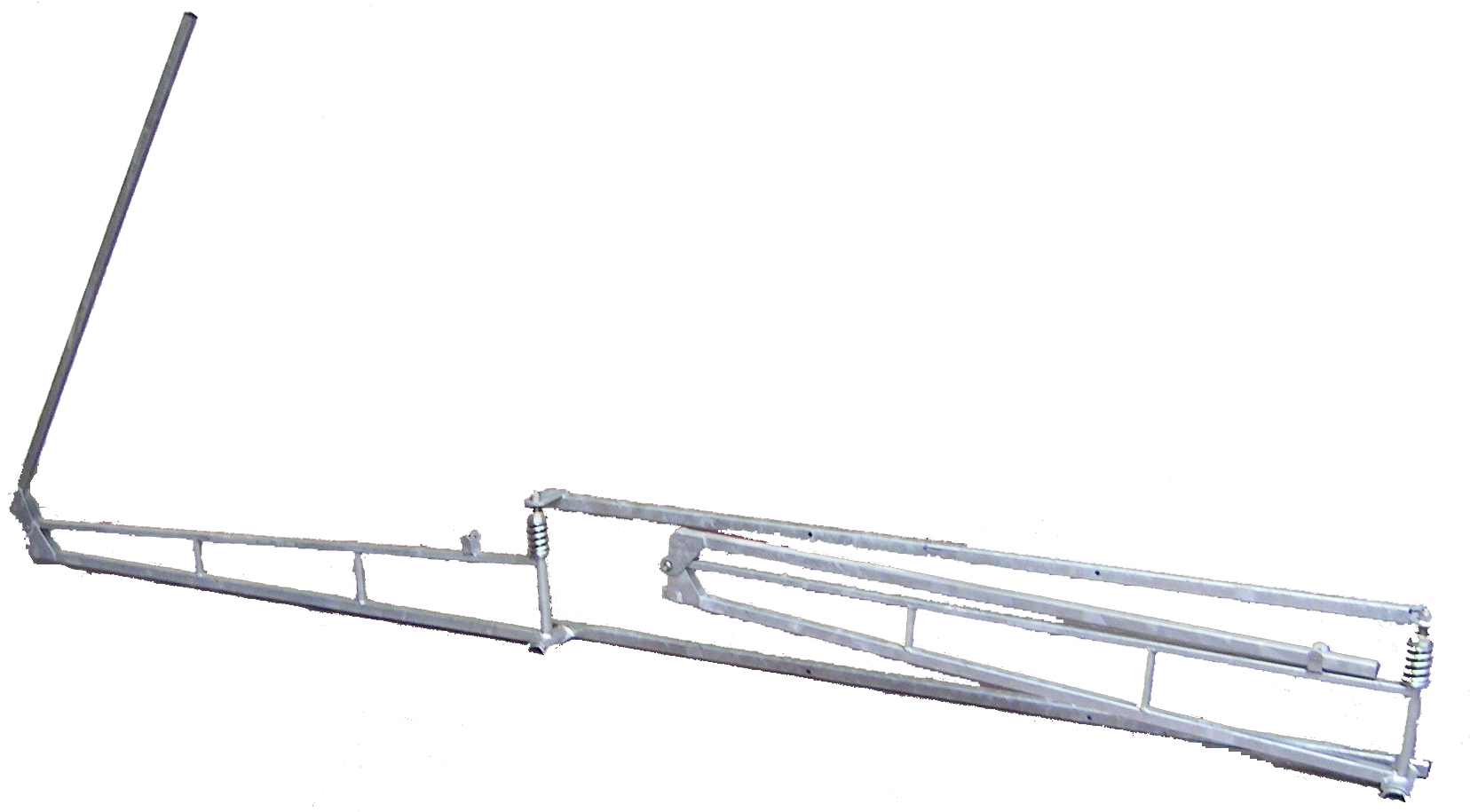

        10,13,16, 20 ft Closed Boom               10,13,16,20 ft Open Boom                      27 ft Boom

                    Closed Dry Boom.jpg (120557 bytes)                  Open Dry Boom.jpg (78241 bytes)                   Export 27 ft open.jpg (229614 bytes)

                           (Click on thumbnails to view bigger picture)

Description:  The manual folding boom is a spring-loaded boom.  It is available in 5 different sizes: 10ft, 13ft, 16ft, 20 and 27ft.  The booms structure is made of galvanized square steel.  All our folding booms are boxed and can be shipped by carrier such as UPS.  Nozzles and nozzle body are not included.

Cross-section dimension:  center section is  1 1/4" x 1 1/4"

                                                 wing section is  1" x  1"

Table:  Part Numbers for Manual Folding Booms
Open Boom Length Hinge to Hinge Length Weight Box Dimension Dry Boom Part Number
10 ft 36 in 22 lbs 65" x 8" x 8" BG017460
13 ft 48 in 25 lbs 65" x 8" x 8" GG100499000F
16 ft 61 in 31 lbs 65" x 8" x 8" BG005454
20 ft 74 in 38 lbs 78" x 8" x 8" GG100699000F
27 ft 74 in 55 lbs 78" x 7" x 15" BG001443Z1

REQUEST PRICE?
