CP 45 (180 w, 1.60 cfm, 173 psi)
Piston Compressor
Part Number 299509
|
|
|
|
|
Air Compressor Specifications |
|
|
Motor Type |
Perm. Magnet |
|
Compressor Type |
Piston |
|
Motor Voltage (V) |
12 |
|
Nominal Speed (rpm) |
3700 |
|
Power (W) |
180 |
|
Amperage (A) |
22 |
|
Max Flow Rate (CFM) |
1.60 |
|
Max Flow Rate (l/min) |
45 |
|
Max Pressure (bar, PSI) |
12 bar, 173 psi |
|
Service (CEI EN 60034-1) |
S3 |
|
Duty Cycle (@101 psi, 22) |
50% (20 min ON, 20 min OFF |
|
Working Method |
Oil-less (dry) |
|
Materials |
Aluminum, Technopolymer |
|
Valves |
Stainless Steel |
|
Protection (DIN EN 60529) |
IP 20 |
|

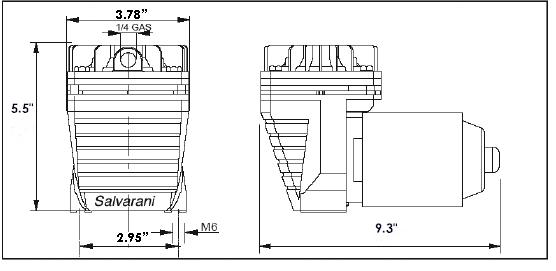

Size (inches) |
9.3 x 5.5 x 3.75 |
|
Weight (Kg, lbs) |
3.2kg, 7 lbs |
|
TIME TO FILL UP TANK FROM 0 to 72 psi (5 bar) |
|
|
2 Liters (0.5 USG) |
31 sec |
|
4 Liters (1 USG) |
1 min |
|
10 Liters (2.6 USG) |
2 min 30 sec |
|
20 Liters (5.3 USG) |
5 min |
|
TIME TO FILL UP TANK FROM 0 to 100 psi (7 bar) |
|
|
2 Liters (0.5 USG) |
46 sec |
|
4 Liters (1 USG) |
1 min 30 sec |
|
10 Liters (2.6 USG) |
3 min 50 sec |
|
20 Liters (5.3 USG) |
7 min 40 sec |
