CM 40 (96w, 1.27 cfm, 40 psi)
Diaphragm Compressor
Part Number 299501
|
|
|
 |
|
Air Compressor Specifications |
|
|
Motor Type |
Perm. Magnet |
|
Compressor Type |
Diaphragm |
|
Motor Voltage (V) |
12 |
|
Nominal Speed (rpm) |
2000 |
|
Power (W) |
75 |
|
Amperage (A) |
8 |
|

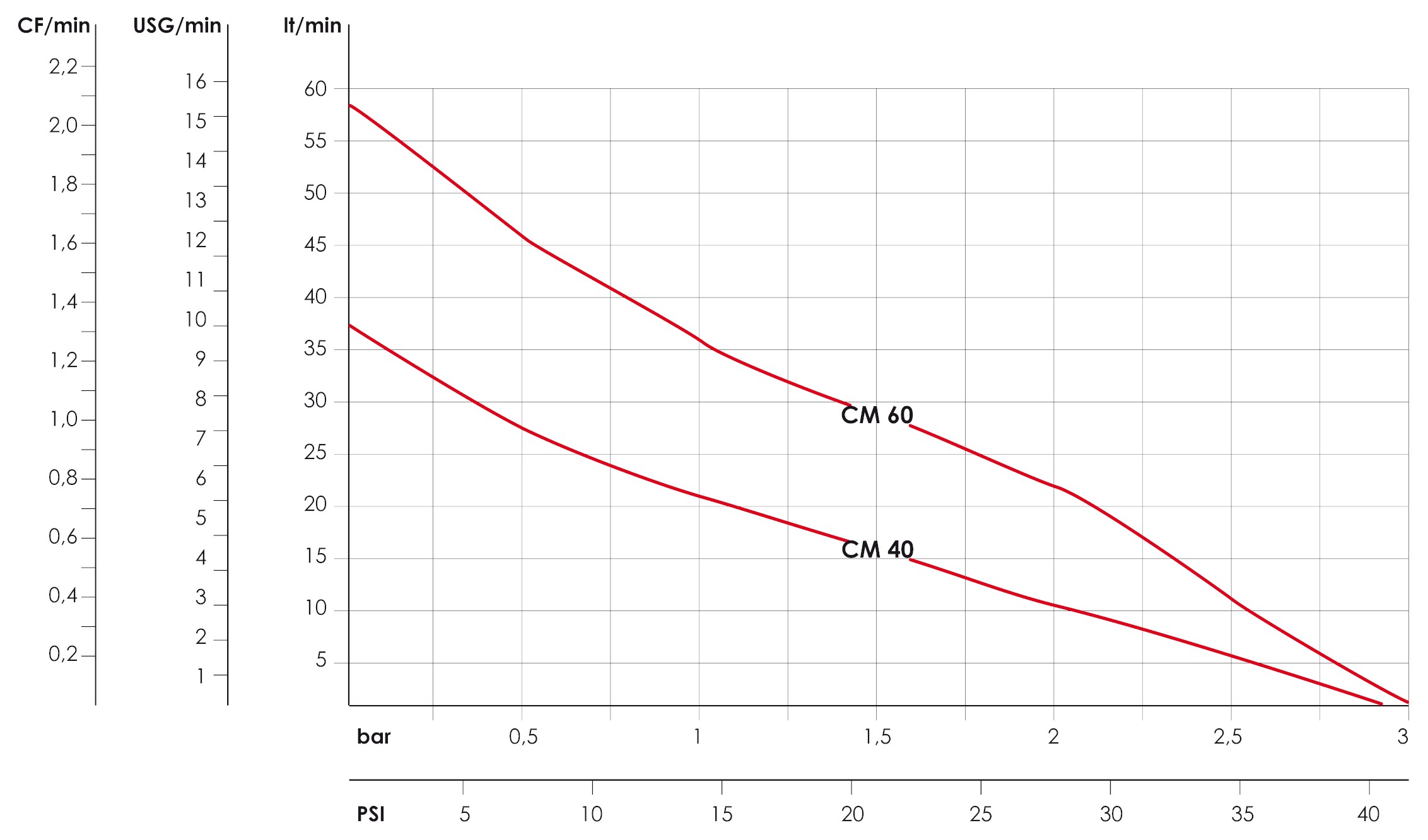

Max Flow Rate (CFM) |
1.27 |
|
Max Flow Rate (l/min) |
36 |
|
Max Pressure (bar, PSI) |
2.8 bar, 40 psi |
|
Service (CEI EN 60034-1) |
S1 |
|
Duty Cycle (@101 psi, 22) |
100% |
|
Working Method |
Oil-less (dry) |
|
Materials |
Aluminum, Technopolymer |
|
Valves |
Stainless Steel |
|
Protection (DIN EN 60529) |
IP 20 |
|

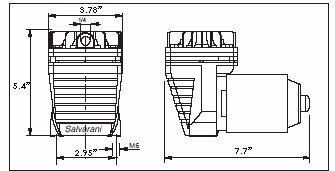

Size (inches) |
7.7 x 5.4 x 2.9 |
|
Weight (Kg, lbs) |
2.4Kg, 5.28 lbs |
|
TIME TO FILL UP TANK FROM 0 to 22 psi (1.5 bar) |
|
|
20 Liters (5.25 USG) |
1 min 30 sec |
|
40 Liters (10.5 USG) |
3 min |
|
60 Liters (16 USG) |
4 min 30 sec |
|
80 Liters (21 USG) |
6 min |
|
TIME TO FILL UP TANK FROM 0 to 30 psi (2 bar) |
|
|
20 Liters (5.25 USG) |
2 min 18 sec |
|
40 Liters (10.5 USG) |
4 min 36 sec |
|
60 Liters (16 USG) |
6 min 54 sec |
|
80 Liters (21 USG) |
9 min 12 sec |
Parts
Breakdown for Diaphragm Compressor (pdf file)
